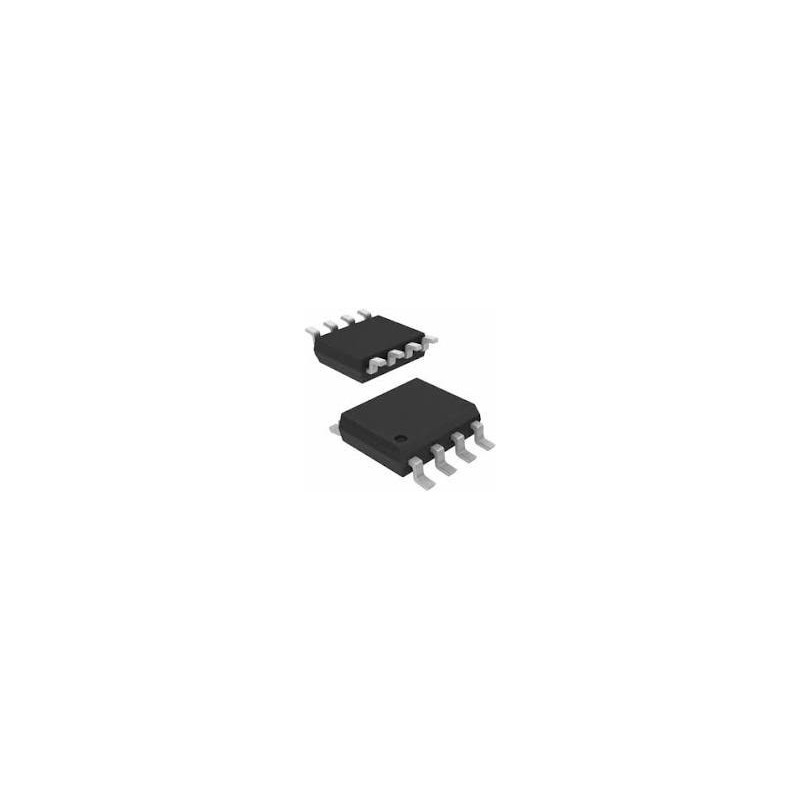

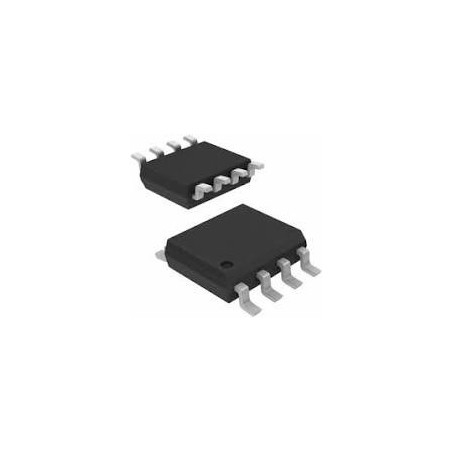

FDS6676AS

General Description
The FDS6676AS is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC:DC
power supplies.

This 30V MOSFET is designed to maximize power conversion efficiency, providing a low
RDS(ON) and low gate charge.

The FDS6676AS includes an integrated Schottky diode using Fairchild’s monolithic SyncFET technology.
Applications
• DC/DC converter
• Low side notebook
Features
• 14.5 A, 30 V. RDS(ON) max= 6.0 mΩ @ V GS = 10 V
RDS(ON) max= 7.25 mΩ @ V GS = 4.5 V
• Includes SyncFET Schottky body diode
• Low gate charge (45nC typical)
• High performance trench technology for extremely low
RDS(ON) and fast switching
• High power and current handling capability
